Spiral Dryer Mesh Belt
Spiral Dryer Mesh Belt
Product Introduction
Our Spiral Dryer Mesh Belt is a high-performance spiral-woven industrial mesh belt specially designed for drying, dewatering and conveying systems in multiple industries. Adopting premium polyester monofilaments and unique spiral weaving technology, this mesh belt features an integral and sturdy structure with outstanding flexibility and running stability. It delivers excellent air permeability and uniform heat circulation, enabling fast and even material drying. Widely used in paper mill drying sections, wood fibreboard production, food processing and chemical material drying, it adapts to continuous high-temperature and high-frequency conveying work.
The heavy-duty Spiral Dryer Mesh Belt boasts superior high-temperature resistance, abrasion resistance and tensile stability, with low deformation and low elongation during long-term operation. Its open spiral mesh structure prevents material accumulation, ensures smooth air flow and allows easy cleaning and maintenance. The seamless connecting design reduces running friction and avoids deviation or jamming. With long service life and stable drying and conveying performance, it effectively improves production efficiency and lowers equipment maintenance costs, acting as a reliable core accessory for industrial spiral dryer systems.
Product Details
Spiral dryer mesh belt with fillers /polyester spiral press filter cloth /spiral mesh with fillers polyester spiral fabric with fillers--- supper loop
The fillers are added into the spiral loops, in order to decrease the air permeability. The supper large loop spiral fabrics with fillers are used in belt press for water treatment, coal washing , sludge dewatering, etc.
Product Data
|
Type |
Filament diameter(mm) |
CFM (125pa) |
Air permeability (m³/m²h) (100pa) |
|
|
Warp |
Weft |
|||
|
6080 |
0.5 |
0.78 |
940 |
15000 |
|
6890 |
0.9 |
1.1 |
1130 |
18000 |
|
3868 |
0.7 |
0.9 |
1012 |
16000 |
|
9011 |
0.9 |
1.1 |
1330 |
21000 |
Application

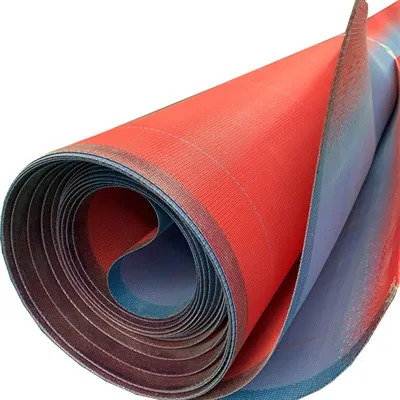

Spiral dryer mesh belt used in paper making drying section
For the wastewater treatment industry.
