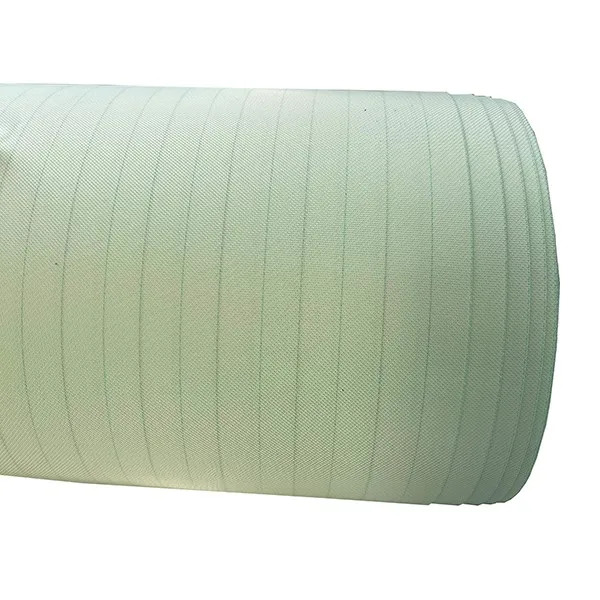

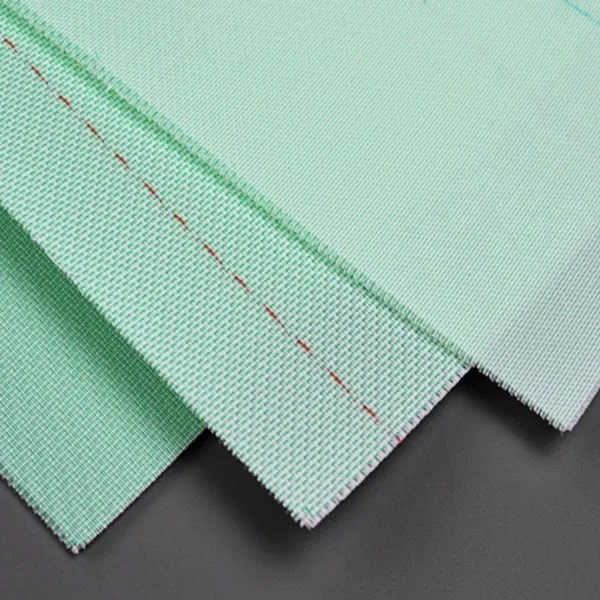

Two and Half Layer Forming Wrie

This is the most popular family of 2.5 Layer (x-pick). These fabrics offer more fiber support index because of an additional fine filler yarn added on the top layer. The top & bottom weft ratio remains 2:1. 16-shed Two and half layer forming wire is used for producing quality printing paper, such as offset printing paper, copperplate paper, newsprint, aluminum foil backing paper and cigarette paper series ( wrap paper and filter tips paper), also be used for producing toilet paper, tissue paper and surface pulp, lining pulp, core pulp and bottom pulp of the board paper etc. Suitable for medium and high speed paper making machine. Without sacrificing drainage characteristic this fabric caters to increased demand of higher fabric and filler retention. This design provides higher fiber support index compared to double layer design. This is achieved by providing an extra support shoot (small cross direction yarn) on the topside of double layer construction. This reduces the distance between the two top yarns and provides better support to cellulosic fiber. This fabric is used for making fine quality paper. 16 shaft 2.5 layer provides higher abrasion and increases the running time.

Send Inquiry

Product Introduction

Two And Half Layer Forming Wire

Product Introduction

Our Two and Half Layer Forming Wire is a high-performance core component specially designed for modern papermaking machines. The Two and Half Layer Forming Wire integrates excellent fiber retention, drainage performance and structural stability, perfectly meeting the diverse production needs of the papermaking industry. Made of high-quality polyester fiber through advanced precision weaving technology, the Two and Half Layer Forming Wire boasts outstanding tensile strength and wear resistance, ensuring the Two and Half Layer Forming Wire maintains stable performance during long-term high-speed operation.

The Two and Half Layer Forming Wire features a unique semi-double-layer structure, combining the advantages of single-layer and double-layer wires. Our Two and Half Layer Forming Wire is widely used in producing cultural paper, packaging paper and specialty paper. We provide customized Two and Half Layer Forming Wire to match your papermaking equipment, ensuring the Two and Half Layer Forming Wire brings efficient production and reliable performance.

Product Features

1. Excellent dimensional stability

2. High air permeability

3. Design allows to incorporate thicker weft filament without sacrificing stacking

Benefits

1. Excellent life potential

2. Good drainage

3. Good dimensional stability

4. Powerful construction that withstands high MD loads and resists CD ridging

Specification

Material	100% Polyester
Type	Woven Two and half layer forming mesh
Color	Green
Air Permeability (CFM)	285-410
Features	High temperature resistance, abrasion resistance and aging resistance etc
Advantages	Good Tensile Strength, Suitable Air Permeability, Firm Endless Joint with semi-automatic inserting machine
Applications	Paper Making and Paper Pulp, Filter
Matched filter machine	Paper Machine Forming Part
Seam type	Endless Seam
Size	Customized

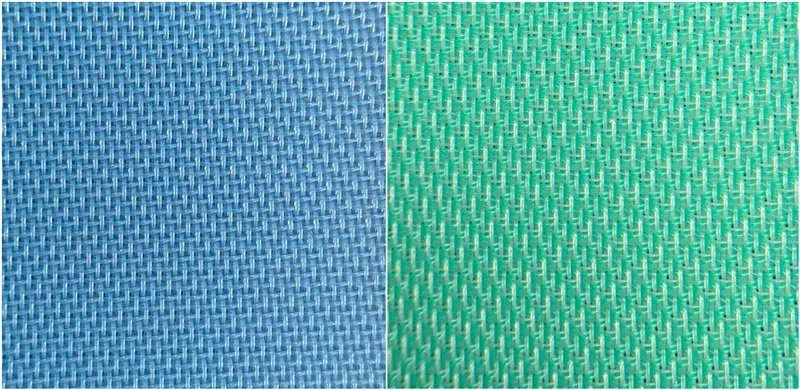

Production Details

Product-details2

Product Qualification

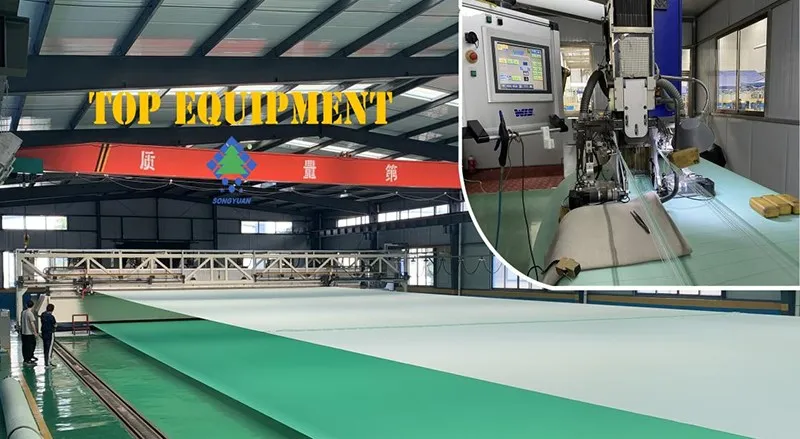

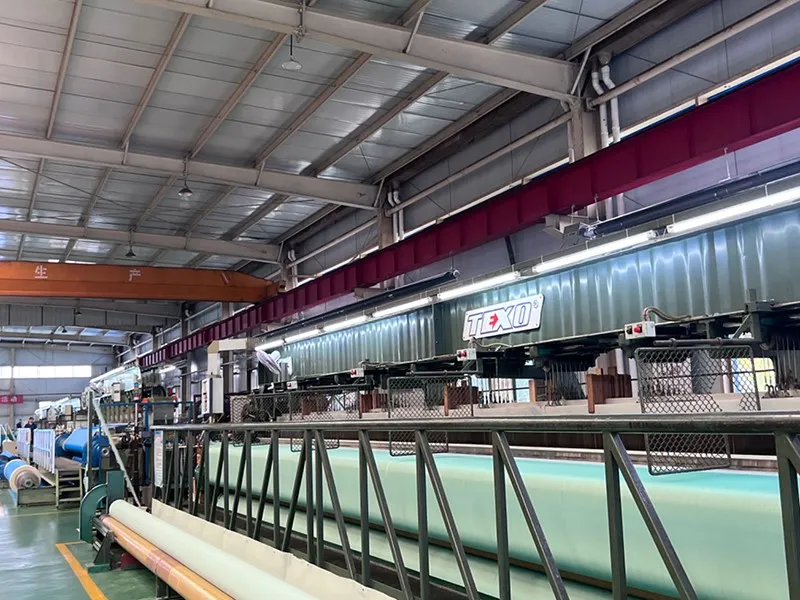

Production-equipment

Production-equipment2

Imported Raw Material

Imported-raw-material

Our Two and half layer forming wire have two types: 8 shed and 16 shed. Depending on the parameters of different paper machines, we can provide customized services.
