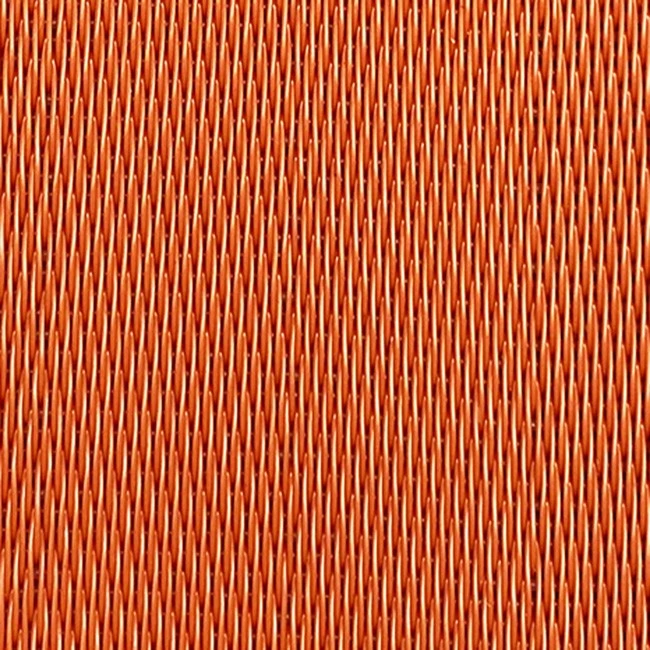

Polyester Sludge Dewatering Mesh
Polyester Sludge Dewatering Mesh
Product Introduction
Our Polyester Sludge Dewatering Mesh is a high-performance filtration accessory specifically engineered for sludge dewatering systems, widely used in municipal sewage treatment, industrial wastewater treatment, food processing, and environmental protection projects. Made of high-quality polyester fiber, it combines excellent mechanical strength and chemical resistance, effectively adapting to harsh working environments with corrosive sludge and high-pressure dewatering conditions.
The mesh features a precise woven structure, with uniform mesh size and smooth surface, ensuring efficient solid-liquid separation, fast water drainage, and minimal sludge residue. It boasts outstanding wear resistance, dimensional stability, and anti-clogging performance, reducing the frequency of cleaning and replacement, thus lowering operational costs and improving work efficiency.
We provide customizable specifications, including different mesh sizes, thicknesses, and weaving patterns, to meet the diverse dewatering needs of different sludge types (such as municipal sludge, industrial sludge, and food sludge). With strong tensile strength and long service life, our polyester sludge dewatering mesh is a reliable choice for customers pursuing high-efficiency, cost-effective, and environmentally friendly sludge treatment solutions.
Product Data
|
Type |
Filament diameter(mm) |
Density(lines/cm) |
CFM (125pa) |
Air permeability(100pa) |
||
|
Warp |
Weft |
Warp |
Weft |
|||
|
YLW15803 |
0.66 |
0.8 |
15.2 |
5.8 |
360 |
5760 |
|
YLW16903 |
0.7 |
0.9 |
16.3 |
5.15 |
425 |
6800 |
|
YLW16903 |
0.68 |
0.9 |
16.3 |
5.2 |
425 |
6800 |
|
YLW16904 |
0.7 |
0.9 |
16.3 |
5 |
645 |
10320 |
|
YLW22903 |
0.5 |
0.9 |
23 |
5.5 |
530 |
8500 |
|
YLW24908 |
0.5 |
0.9 |
24.8 |
7.1 |
460 |
7360 |
|
YLW181003 |
0.55 |
1.0 |
18.1 |
5.3 |
525 |
8400 |
|
YLW181005 |
0.65 |
1.0 |
18.1 |
5.65 |
490 |
7840 |
|
TSW181005 |
0.65/0.35(copper wire) |
1.0 |
18.1 |
5.65 |
470 |
7600 |
|
YLW24708 |
0.5 |
0.7 |
24.3 |
9.8 |
340 |
5441 |
|
YLW241008 |
0.5 |
1.0 |
24.3 |
7.1 |
399 |
6380 |
|
YLW25608 |
0.48 |
0.6 |
25 |
11.1 |
318 |
5091 |
|
YLW28506 |
0.35 |
0.5 |
28 |
16 |
112 |
1760 |
|
YLW29506 |
0.35 |
0.5 |
29.2 |
12.8 |
253 |
4030 |
|
YLW14804 |
0.66/0.65 (Carbon wire) |
0.8 |
14.5 |
6.7 |
431 |
6900 |
|
YLW12804 |
0.8 |
0.8 |
12.4 |
4.8 |
645 |
10430 |
|
YLW121004 |
0.66/0.35(copper wire) |
1.0 |
12.7 |
5.7 |
505 |
8000 |
|
YLW46506 |
0.3 |
0.5 |
46.8 |
12.2 |
150 |
2400 |
|
YLW46506 |
0.3 |
0.5 |
46.2 |
13.5 |
137 |
2130 |
Product Details
Joint Type
Steel Clip Joint
Endless joint
Spiral joint
Application
Used in solid-liquid separation industries such as sewage treatment and other industry
Our Advantages
Choose great materials & proper material stock for stability product quality.
Get the ISO9001:2015 quality management system certification.
Test 7 times to meet the National or International or Customer Standard
Use advanced equipment and technology from top supplier, such as TEXO
We believe in long-term cooperation and deep technical exchange.
